Backdate center filler conversion-kit for Porsche 964 / 993
This "Singer Style" center filler kit allows fuel filling through the center of the bonnet while closed. The fuel filler neck and base is attached to the included strut brace and connected to the fuel line connection of the standard fuel tank. The front fender tank cap opening in the can therefore be blinded like in Porsche racing cars or the "964 Singer Porsche". With this solution, the TÜV approval is also retained.
The tank cap is available in polished, natural or black anodized finish. It is also lockable. The decorative cap with integrated "Fuel" lettering is attached to the also included lockable tank cap with magnets.
A twin rainwater drain hose and the included sealing profile prevent rainwater from building up in the tank bowl or even getting into the trunk.
The position of the tank cap in the hood can be adjusted in height and inclination in all directions using various options.

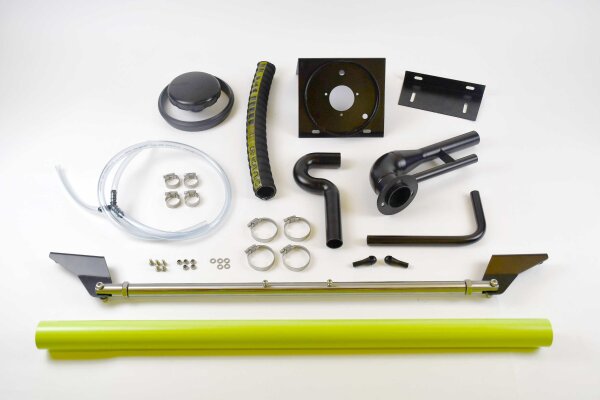

All required mounting materials and illustrated installation instructions are included.
Installation instructions:
The original filler neck from the front fender must either be glued or welded into the filler pipe provided. When gluing, make sure that it is a high-quality and petrol-resistant adhesive. We recommend welding it.
The original tank must be treated with heat on one side and deformed using the contained tool.
Compatibility:
This center fueling system can be installed in all Porsche 964 and 993 models that have an original tank with one of the following part numbers: 96420102100 / 96420102104 / 99320102100.
For all other tanks with the part numbers 96420128700 and 96420102102, further modifications to the vehicle by the customer are necessary and direct installation is not possible.
Category: | Backdate |
SKU: | TK Z 56 |
GTIN: | 4251967364629 |
Characteristic: | BackdateSinger Style964993 |
Shipping weight: | 8,00 kg |
Item weight: | 7,00 kg |
